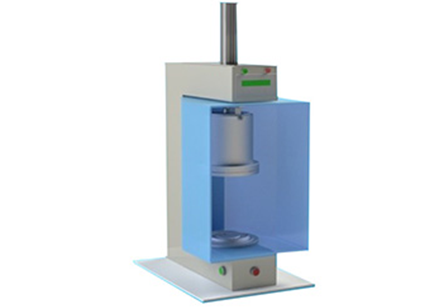

Stationary Leak Tester OX0400
Our Can Leak Tester (CLT) is the solution for testing different sizes of cans.
The CLT makes use of pressure difference as leak test method.
Through the use of one preformed rubber membranes it is possible to create a deep vacuum in the test room without destroying the package or seals and to create a very small measuring space around the packaging. With our standard solution we can detect micro-leaks as well as large leaks without changing the settings. At the same time identical and different packaging can be tested.
The CLT measures according to the Nondestructive Detection of Leaks in
Packages by Vacuum Decay Method (ASTM F2338).
|
Size packaging: |
20 x 20 cm |
|
Cycle time: |
< 30 sec |
|
Pressure diff: |
+ 700 mbar |
|
Leak size: |
> 10 µm |
|
Long term drift pressure |
< 0.1% p/y |
|
Size and weight: |
55 x 54 x 70 cm 25 Kg |
|
Supply: |
100 – 230 Volt - 50 Hz 0.24 kW |
|
Press. air： |
>5 –<8 bar – 400 Nl/min IP52 |
Double handed operation.
Saves results of the last 5000 measurements in .csv format.
Connection with data collector according to OPC(OLE for Process Control) format or through FTP.
?Non-destructive
?Accurate
?Easy to operate
?Direct result
?Robust design
Connections:
Ethernet connection
8 mm press.air
IEC Connector
